12. JAX

JAX

JAX is a new library from Google Research. JAX can automatically differentiate native Python and Numpy functions.

  • Loops
  • Branches
  • Recursion
  • Closures
  • Can take Derivative of Derivatives
    • Supports reverse mode differentiation, also known as [Back Propagation] using Grad function
    • Supports forward mode differentiation

XLA

XLA is Accelerated Linear Algebra.

  • It is a domain-specific compiler for linear algebra that can accelerate TensorFlow models with potentially no source code changes.

  • Performs optimizations like:

    • Fusing operations together (something like consolidation) so the intermediate results do not have to written out the memory. Instead it get streamed into next operation.
    • This enable faster and more efficient processing

    This is some what crudely equal to nodejs stream: - Refer: TableauCRM CLI using this stream concept, where it loads data from a Oracle SQL Query results directly into Tableau CRM dataset - refer: sfdx mohanc:ea:dataset:loadFromOra

     def model (x, y, z):
     return tf.reduce_sum( x + y * z)

JAX uses XLA to compile and run our Numpy program on GPUs and TPUs

JAX uses JIT (just-in-time) compile of custom functions into XLA optimized kernels using decorator @jit


@jit # jit decorator
def update(params, x, y):
    grads = gard(loss)(params, x, y)
    return [ (w - step_size * dw, b - step_size * db) for (w, b), (dw, db) in zip (params, grads)]

pmap

  • JAX applies pmap (Parallel Map) replicating computations across multiple cores pmap

Autograd

Autograd (https://github.com/hips/autograd) can automatically differentiate native Python and Numpy code.

Functions available for the transformations

  • grad
  • jit
  • pmap
  • vmap - automatic vectorization
    • allowing us to turn a function which can handle only one data point into a function which can handle batch of these data points of any size with just one wrapper function vmap

Sample - MNIST


import jax.numpy as jnp
from jax import grad, vmap, jit


def predict(params, inputs):
  for W, b in params:
    outputs = jnp.dot(inputs, W) + b
    inputs = jnp.tanh(outputs)
  return outputs

def loss (params, batch):
  inputs, targets = batch
  preds = predict(params, inputs)
  return jnp.sum( (preds - targets) **2 ) # SME


gradient_fun = jit(grad(loss))
preexample_grads = vmap(grad(loss), in_axes=(None, 0))

Key Ideas

  • Python code is traced into an Intermediate Representation (IR)
    • IR can be transformed (automatic differentiation)
    • IR enables domain-specific compilation (XLA - Accelerated Linear Algebra)
  • Has very powerful transforms
    • grad
    • jit
    • vmap
    • pmap

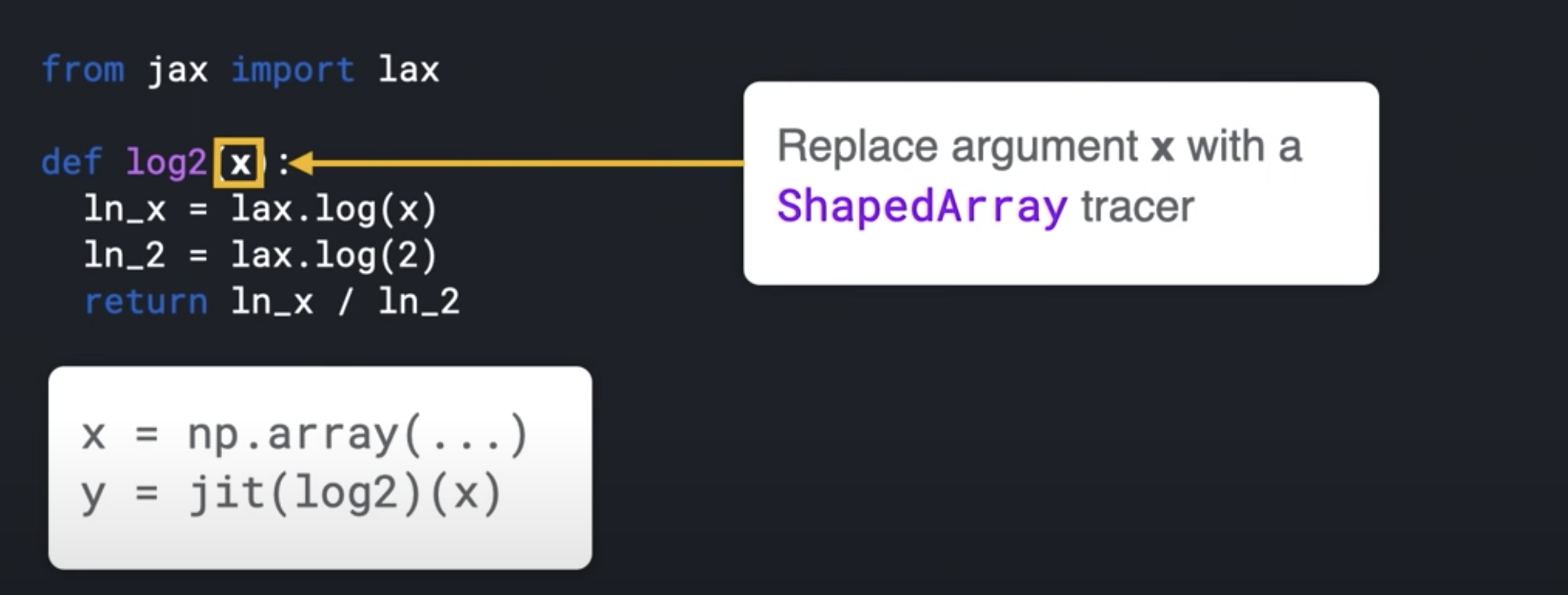

  • Python's dynamism makes this possible
    • JAX makes use of this dynamism and evaluates a function's behavior by calling it on a tracer value
def sum(x):
    return x + 2

class ShapedArray(object):
    def __add__ (self, other):
        self.record_computation("add", self, other)
        return ShapedArray(self.shape, self.dtype) # dtype is like float32

sum( ShapedArray( (2,2), float32 ))

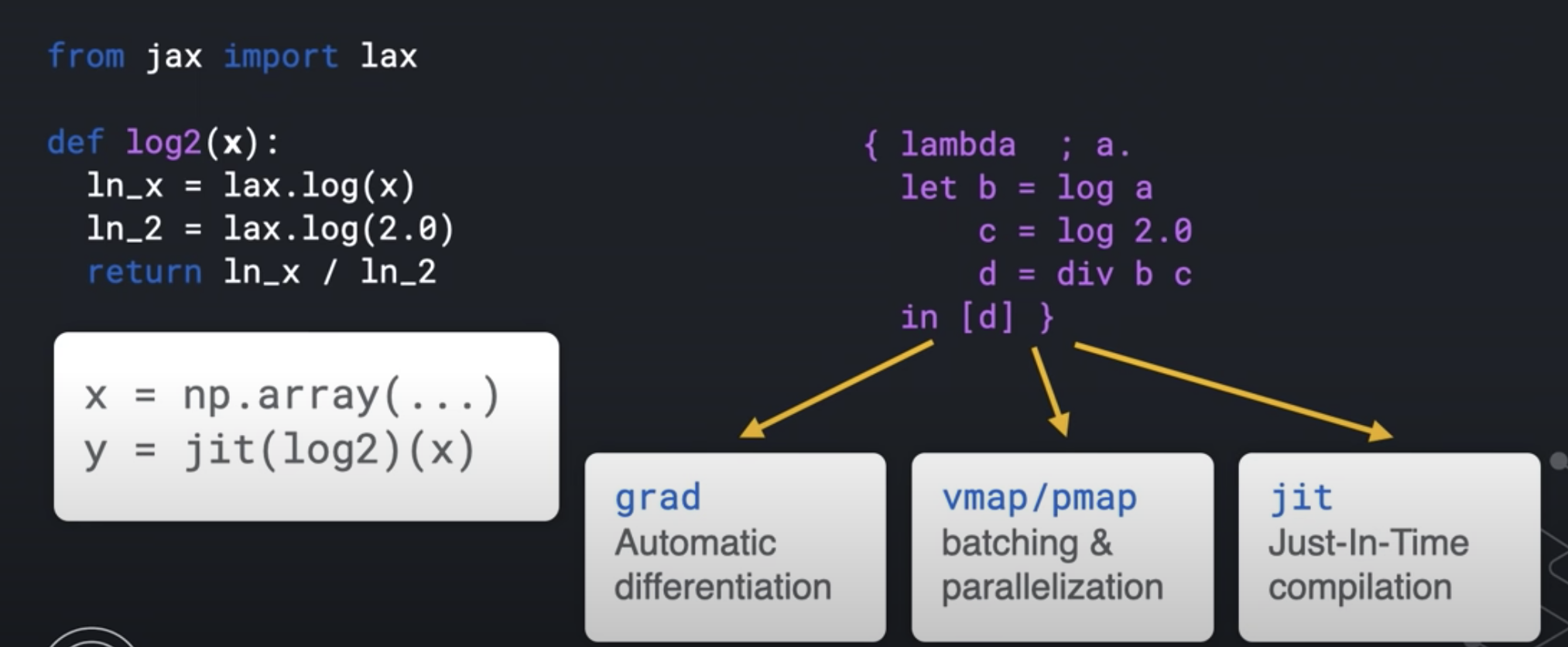

jax-IR

With this IR, JAX knows how to do the transforms like:

  • grad
  • jit
  • vmap
  • pmap

jax-IR

jax-IR

TF_CPP_MIN_LOG_LEVEL=0

import jax
import jax.numpy as jnp

global_list = []

def log2(x):
  global_list.append(x)
  ln_x = jnp.log(x)
  ln_2 = jnp.log(2.0)
  return ln_x / ln_2

print( jax.make_jaxpr(log2)(3.0) )


{ lambda ; a:f32[]. let
    b:f32[] = log a
    c:f32[] = log 2.0
    d:f32[] = div b c
  in (d,)
}

Jake on JAX
