- Requires 0.0.73 version of the plugin
$ sfdx mohanc:ea:dataflow:fieldUsage -h
Get Field Usage Info for the given dataflow
USAGE
$ sfdx mohanc:ea:dataflow:fieldUsage
OPTIONS
-d, --dataflowid=dataflowid Dataflow Id to analyzed
-u, --targetusername=targetusername username or alias for the target org; overrides default target org
--apiversion=apiversion override the api version used for api requests made by this command
--json format output as json
--loglevel=(trace|debug|info|warn|error|fatal) logging level for this command invocation
EXAMPLE
Get Field Usage data for the given dataflow
sfdx mohanc:ea:dataflow:fieldUsage -u <username> -d <dataflowId>
Creates output in both csv and json file
--------------------------------------------------
NOTE:
Use:
sfdx mohanc:ea:dataflow:list -u <username>
to list the dataflows in the org
$ sfdx mohanc:ea:dataflow:list -u mohan.chinnappan.n_ea2@gmail.com
Id,Label
02K3h000000Mu1oEAC,exportOppty2
02K3h000000Mu0vEAC,exportOppty
02K3h000000MtyuEAC,ExportCustomers
02K3h000000MrxWEAS,fruitsdf
02K3h000000Mr7JEAS,The_Motivator
02K3h000000Mr7KEAS,Default Salesforce Dataflow
$ sfdx mohanc:ea:dataflow:fieldUsage -u mohan.chinnappan.n_ea2@gmail.com -d 02K3h000000Mr7JEAS
=== Looking at the dataflow: 02K3h000000Mr7JEAS, The_Motivator ...
=== Looking at the dataflow's sfdcRegister actions ...
_________________________________________________
=== Looking at the dataset: user ...
=== Looking at current version of the dataset: user ...
=== Looking at Security Predicate of the dataset: user ...
=== Looking at WHERE USED details of the dataset: user ...
=== Looking at Dashboards using this dataset: user ...
=== Looking at Lenses using this dataset: user ...
_________________________________________________
=== Looking at the dataset: activity ...
=== Looking at current version of the dataset: activity ...
=== Looking at Security Predicate of the dataset: activity ...
=== Looking at WHERE USED details of the dataset: activity ...
=== Looking at Dashboards using this dataset: activity ...
_________________________________________________
Writing output files in: The_Motivator_fldusage.json and The_Motivator_fldusage.csv
Done.
$ cp ea/02K3h000000Mr7JEAS.csv /tmp/fieldusage.csv
$ sfdx mohanc:ea:dataset:load -u mohan.chinnappan.n_ea2@gmail.com -d /tmp/fieldusage.csv
[
{
fullyQualifiedName: 'fieldusage_csvDataset.type',
label: 'type',
name: 'type',
isSystemField: false,
isUniqueId: false,
isMultiValue: false,
multiValueSeparator: 'null',
type: 'Text'
},
{
fullyQualifiedName: 'fieldusage_csvDataset.name',
label: 'name',
name: 'name',
isSystemField: false,
isUniqueId: false,
isMultiValue: false,
multiValueSeparator: 'null',
type: 'Text'
},
{
fullyQualifiedName: 'fieldusage_csvDataset.dataflowName',
label: 'dataflowName',
name: 'dataflowName',
isSystemField: false,
isUniqueId: false,
isMultiValue: false,
multiValueSeparator: 'null',
type: 'Text'
},
{
fullyQualifiedName: 'fieldusage_csvDataset.datasetName',
label: 'datasetName',
name: 'datasetName',
isSystemField: false,
isUniqueId: false,
isMultiValue: false,
multiValueSeparator: 'null',
type: 'Text'
},
{
fullyQualifiedName: 'fieldusage_csvDataset.dashboardName',
label: 'dashboardName',
name: 'dashboardName',
isSystemField: false,
isUniqueId: false,
isMultiValue: false,
multiValueSeparator: 'null',
type: 'Text'
},
{
fullyQualifiedName: 'fieldusage_csvDataset.lensName',
label: 'lensName',
name: 'lensName',
isSystemField: false,
isUniqueId: false,
isMultiValue: false,
multiValueSeparator: 'null',
type: 'Text'
},
{
fullyQualifiedName: 'fieldusage_csvDataset.InSecurityPredicate',
label: 'InSecurityPredicate',
name: 'InSecurityPredicate',
isSystemField: false,
isUniqueId: false,
isMultiValue: false,
multiValueSeparator: 'null',
type: 'Text'
},
{
fullyQualifiedName: 'fieldusage_csvDataset.usageCount',
label: 'usageCount',
name: 'usageCount',
isSystemField: false,
isUniqueId: false,
type: 'Numeric',
defaultValue: '0',
precision: 18,
scale: 0
},
{
fullyQualifiedName: 'fieldusage_csvDataset.inUse',
label: 'inUse',
name: 'inUse',
isSystemField: false,
isUniqueId: false,
isMultiValue: false,
multiValueSeparator: 'null',
type: 'Text'
}
]
{ id: '06V3h0000005uEOEAY', success: true, errors: [] }
Load part: 1
{ id: '06W3h00000075pdEAA', success: true, errors: [] }
Going to process...
Done.

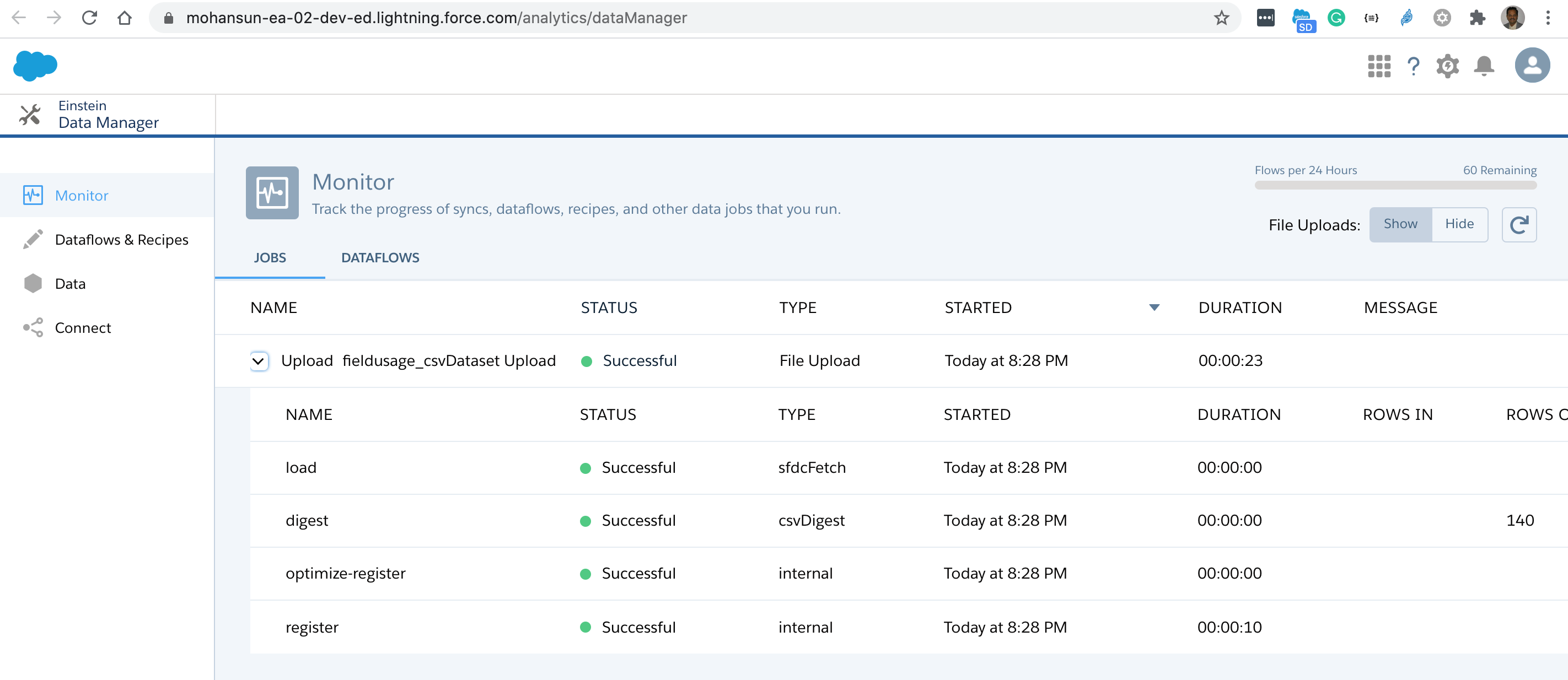

- Dataflow job created details

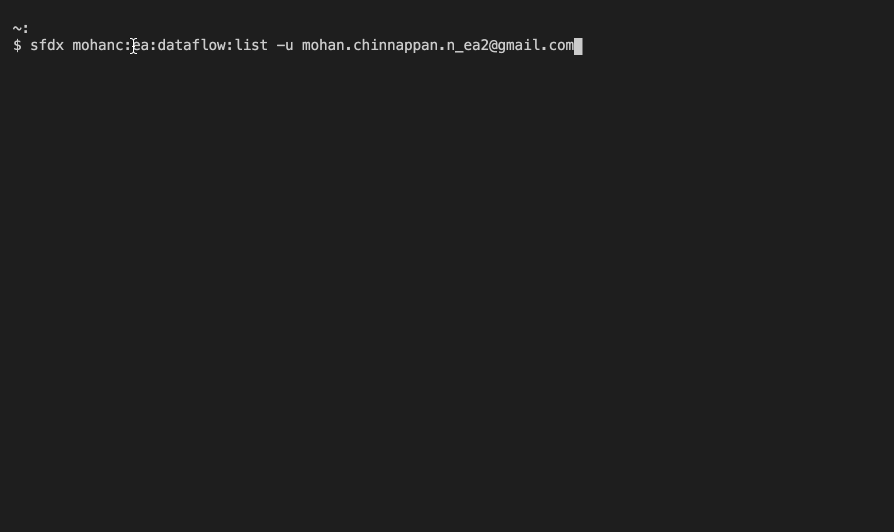

$ sfdx mohanc:ea:dataflow:list -u mohan.chinnappan.n_ea2@gmail.com
Id,Label
02K3h000000Mu1oEAC,exportOppty2
02K3h000000Mu0vEAC,exportOppty
02K3h000000MtyuEAC,ExportCustomers
02K3h000000MrxWEAS,fruitsdf
02K3h000000Mr7JEAS,The_Motivator
02K3h000000Mr7KEAS,Default Salesforce Dataflow
# let us look at 02K3h000000MrxWEAS,fruitsdf
$ sfdx mohanc:ea:dataflow:fieldUsage -u mohan.chinnappan.n_ea2@gmail.com -d 02K3h000000MrxWEAS
=== Looking at the dataflow 02K3h000000MrxWEAS ...
=== Looking at the dataflow sfdcRegister Actions ...
_________________________________________________
=== Looking at the dataset regFruitYield ...
Error: getting dataset for the currentVersion!
No field usage can be obtained for this dataflow!
