Real-Time Event Monitoring

• Monitor and detect standard events in Salesforce in near real-time
• Event data can be stored for auditing or reporting purposes

Insights

Key terms

Setting up - Enable Access to Real-Time Event Monitoring

Via Profile or PermissionSet

• View Real-Time Event Monitoring Data
• Customize Application

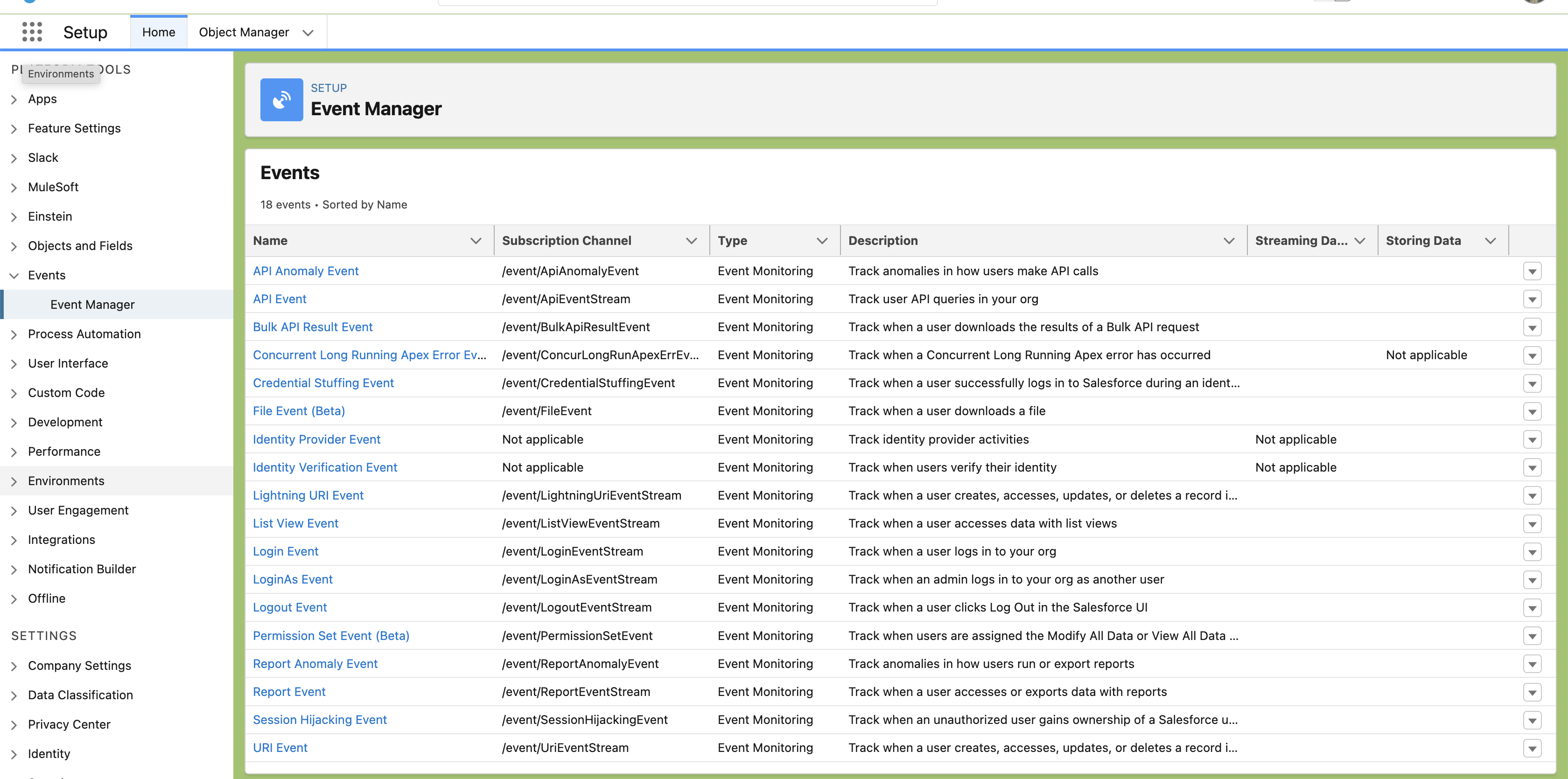

Event Manager

• From Setup, in the Quick Find box, enter Events, then select Event Manager.
• Next to the event you want to enable or disable streaming for, click the dropdown menu.
• Select whether you want to enable or disable streaming or storing on the event.

Querying RealTimeEventSettings

cat ~/.soql/RealTimeEventSettings.soql

SELECT
Id
,DurableId
,Metadata
,FullName
FROM RealTimeEventSettings

sfdx mohanc:tooling:query -u mohan.chinnappan.n_ea2@gmail.com -q  ~/.soql/RealTimeEventSettings.soql -f json

[
    {
        "attributes": {
            "type": "RealTimeEventSettings",
            "url": "/services/data/v57.0/tooling/sobjects/RealTimeEventSettings/bWRjLzBIRS9SZWFsVGltZUV2ZW50U2V0dGluZ3M%3D"
        },
        "Id": "000000000000000AAA",
        "DurableId": "bWRjLzBIRS9SZWFsVGltZUV2ZW50U2V0dGluZ3M=",
        "Metadata": {
            "realTimeEvents": [
                {
                    "entityName": "ApiEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "ApiEventStream",
                    "isEnabled": false
                },
                {
                    "entityName": "ApiAnomalyEventStore",
                    "isEnabled": false
                },
                {
                    "entityName": "ApiAnomalyEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "BulkApiResultEventStore",
                    "isEnabled": false
                },
                {
                    "entityName": "BulkApiResultEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "ConcurLongRunApexErrEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "CredentialStuffingEventStore",
                    "isEnabled": false
                },
                {
                    "entityName": "CredentialStuffingEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "FileEventStore",
                    "isEnabled": false
                },
                {
                    "entityName": "FileEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "IdentityVerificationEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "IdentityProviderEventStore",
                    "isEnabled": false
                },
                {
                    "entityName": "LightningUriEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "LightningUriEventStream",
                    "isEnabled": false
                },
                {
                    "entityName": "ListViewEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "ListViewEventStream",
                    "isEnabled": false
                },
                {
                    "entityName": "LoginEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "LoginEventStream",
                    "isEnabled": false
                },
                {
                    "entityName": "LoginAsEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "LoginAsEventStream",
                    "isEnabled": false
                },
                {
                    "entityName": "LogoutEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "LogoutEventStream",
                    "isEnabled": false
                },
                {
                    "entityName": "PermissionSetEventStore",
                    "isEnabled": false
                },
                {
                    "entityName": "PermissionSetEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "ReportEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "ReportEventStream",
                    "isEnabled": false
                },
                {
                    "entityName": "ReportAnomalyEventStore",
                    "isEnabled": false
                },
                {
                    "entityName": "ReportAnomalyEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "SessionHijackingEventStore",
                    "isEnabled": false
                },
                {
                    "entityName": "SessionHijackingEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "UriEvent",
                    "isEnabled": false
                },
                {
                    "entityName": "UriEventStream",
                    "isEnabled": false
                }
            ],
            "urls": null
        },
        "FullName": "RealTimeEvent"
    }
]

What are the standard events?

Requirements

• Accessing following event objects requires either the Salesforce Shield or Salesforce Event Monitoring add-on subscription and the View Real-Time Event Monitoring Data user permission.

Event and storage details

• With Real-Time Event Monitoring, you can store and query event data in Salesforce objects. Many of the storage events are Salesforce big objects, which are ideal for storing large volumes of data for up to six months. A big object stores the data natively in Salesforce so you can access it for reporting and other uses. Some storage events, such as for Threat Detection, are standard Salesforce objects.

LogoutEventStream

• When LogoutEventStream is enabled, Salesforce publishes logout events when users log out from the UI. You can add an Apex trigger to subscribe to those events. You can then implement custom logic during logout. For example, you can revoke all refresh tokens for a user at logout.

trigger LogoutEventTrigger on LogoutEventStream (after insert) {

  // the subscriber inserts a custom logout event record during logout.
  LogoutEventStream event = Trigger.new[0];
  LogoutEvent__c record = new LogoutEvent__c();
  record.EventIdentifier__c = event.EventIdentifier;
  record.UserId__c = event.UserId;
  record.Username__c = event.Username;
  record.EventDate__c = event.EventDate;
  record.RelatedEventIdentifier__c = event.RelatedEventIdentifier;
  record.SessionKey__c = event.SessionKey;
  record.LoginKey__c = event.LoginKey;
  insert(record);
}

• Simpler one

trigger LogoutEventTrigger on LogoutEventStream (after insert) {

    LogoutEventStream event = Trigger.new[0];
    System.debug(event);
}

sfdx force:source:deploy -u mohan.chinnappan.n_ea2@gmail.com -p force-app/main/default/triggers/LogoutEventTrigger.trigger
Deploying v55.0 metadata to mohan.chinnappan.n_ea2@gmail.com using the v57.0 SOAP API
Deploy ID: 0Af3h00000SEzjlCAD
DEPLOY PROGRESS | ████████████████████████████████████████ | 1/1 Components

=== Deployed Source

 FULL NAME          TYPE        PROJECT PATH
 ────────────────── ─────────── ───────────────────────────────────────────────────────────────────
 LogoutEventTrigger ApexTrigger force-app/main/default/triggers/LogoutEventTrigger.trigger
 LogoutEventTrigger ApexTrigger force-app/main/default/triggers/LogoutEventTrigger.trigger-meta.xml
Deploy Succeeded.

Listing logs

sfdx force:apex:log:list  -u mohan.chinnappan.n_ea2@gmail.com --json |sfdx mohan:data:jq -q '.result' | pbcopy; open "https://mohan-chinnappan-n5.github.io/viz/datatable/dt.html?c=json"

Use Async SOQL with Real-Time Event Monitoring

• User case

Let’s say you’ve created a custom object called Patent__c that contains sensitive patent information. You want to know when users query this object using any API. Use the following Async SOQL query on the ApiEvent object to determine when Patent__c was last accessed, who accessed it, and what part of it was accessed. The WHERE clause uses the QueriedEntities field to narrow the results to just API queries of the Patent__c object.

Async SOQL schedules and runs queries asynchronously in the background, so it can run queries that normally time out with regular SOQL.

With Async SOQL, you can run multiple queries in the background while monitoring their completion status. Set up your queries and come back a few hours later to a dataset to work with. Async SOQL is the most efficient way to process the large amount of data in a storage event, especially for big objects.

• URI

https://yourInstance.salesforce.com/services/data/v56.0/async-queries/

• Payload (payload.json)

{
  "query": "SELECT EventDate, EventIdentifier, QueriedEntities, SourceIp, Username, UserAgent FROM ApiEvent
            WHERE QueriedEntities LIKE '%Patent__c%'",
  "targetObject": "ApiTarget__c",
  "targetFieldMap": {
    "EventDate": "EventDate__c",
    "EventIdentifier": "EventIdentifier__c",
    "QueriedEntities": "QueriedEntities__c",
    "SourceIp": "IPAddress__c",
    "Username": "User__c",
    "UserAgent": "UserAgent__c"
  }
}

 curl -H "Authorization: Bearer <accessToken>" -d @payload.json -X POST

Let us look at ReportEvent

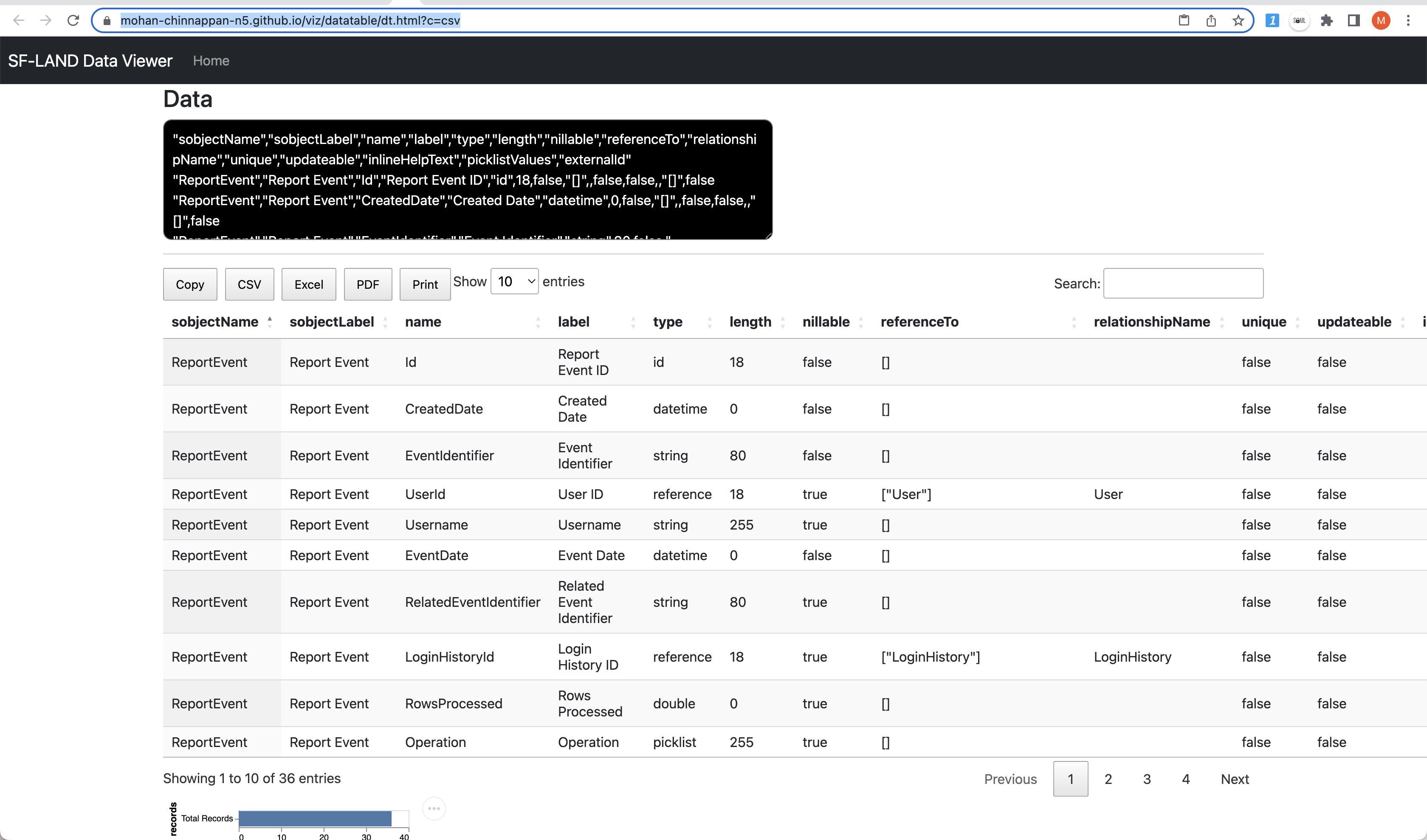

sfdx mohanc:md:describe -u mohan.chinnappan.n_ea2@gmail.com -s ReportEvent | pbcopy; open "https://mohan-chinnappan-n5.github.io/viz/datatable/dt.html?c=csv"

# Fields in ReportEvent Object
cut -f 3 -d "," /tmp/reportevents.csv | sed 's/"//g' | sed 's/^/,/g'

SELECT
Id
,CreatedDate
,EventIdentifier
,UserId
,Username
,EventDate
,RelatedEventIdentifier
,LoginHistoryId
,RowsProcessed
,Operation
,QueriedEntities
,PolicyId
,PolicyOutcome
,EvaluationTime
,SessionKey
,LoginKey
,SessionLevel
,SourceIp
,DashboardId
,DashboardName
,EventSource
,ExecutionIdentifier
,ExportFileFormat
,IsScheduled
,NumberOfColumns
,ColumnHeaders
,GroupedColumnHeaders
,Description
,Format
,ReportId
,Records
,Name
,OwnerId
,Scope
,Sequence
,DisplayedFieldEntities

FROM reportEvent

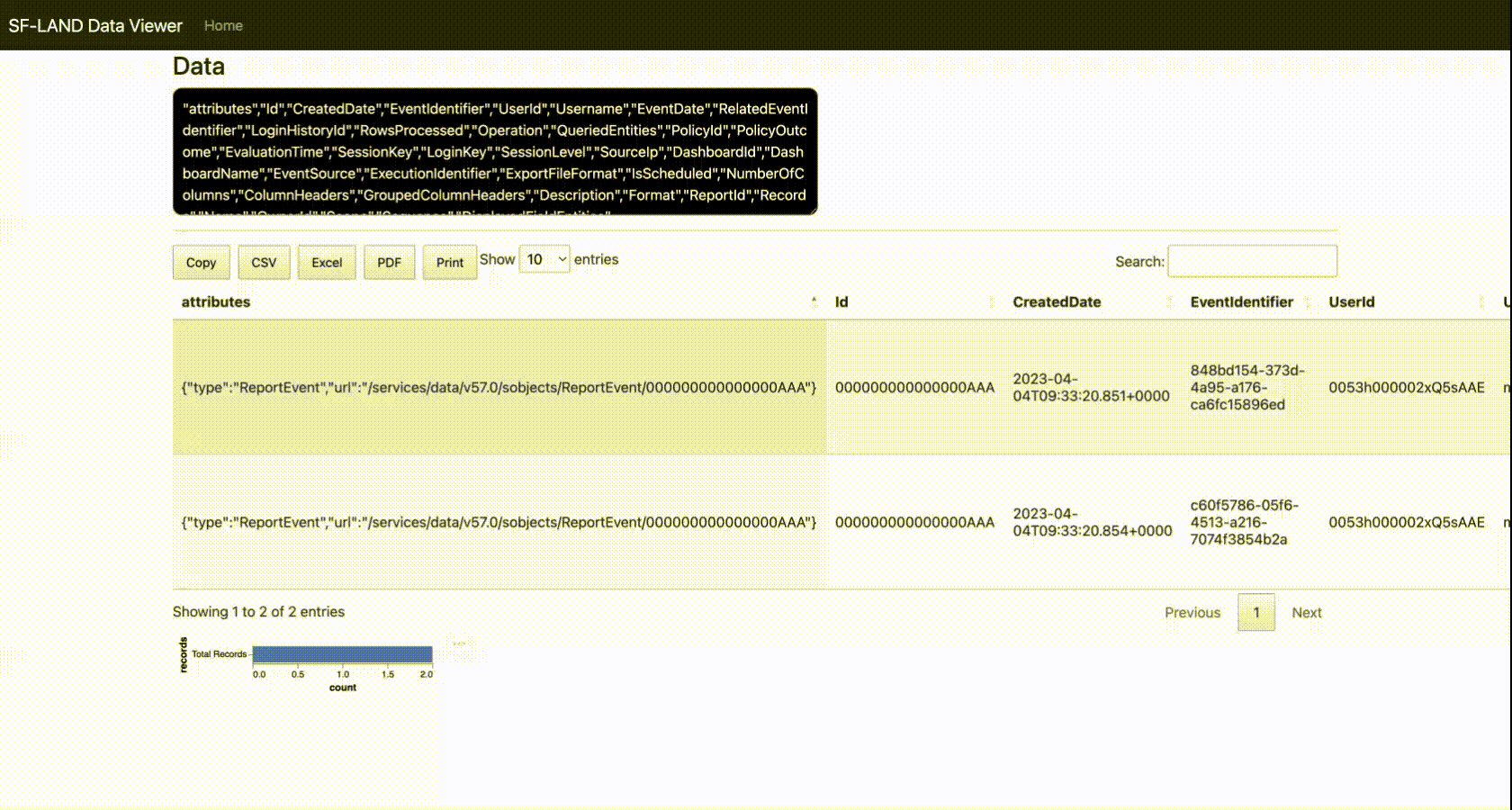

sfdx mohanc:data:query -u mohan.chinnappan.n_ea2@gmail.com -q ~/.soql/reportEvent.soql | pbcopy; open "https://mohan-chinnappan-n5.github.io/viz/datatable/dt.html?c=csv"

References

• Manage Real-Time Event Monitoring Events
• Platform Events Developer Guide
