Transformers

Model success depends on how fast you can build it and how good it is in reducing the losses!

• It is a general-purpose differentiable computer.

• A neural network architecture developed at Google that relies on self-attention mechanisms to transform a sequence of input embeddings into a sequence of output embeddings without relying on convolutions or recurrent neural networks.

• A Transformer can be viewed as a stack of self-attention layers.

• Based on a self-attention mechanisms unlike traditional convolutional (CNN) or recurrent neural networks (RNN)

• Transformer outperforms both recurrent and convolutional models in language translation benchmarks

Resilient

Remarkably, the Transformer architecture published by Google team is very resilient over time. The Transformer that came out in 2017 is basically the same as today except that we reshuffle some of the layer normalizations.

Researchers are making training datasets much larger, evaluation much larger, but they are keeping the architecture untouched, which is remarkable!

• they aggregate information from surrounding words to determine the meaning of a given bit of language in context.

A man/word is known by the company she/he/word keeps means that a person/words is similar to the people/words she/ he/word chooses to spend time with!

Example:

• deciding on the most likely meaning and appropriate representation of the word bank in the sentence :

I arrived at the bank after crossing the… requires knowing if the sentence ends in “... road.” or “... river.”

• It can become a single neural network architecture for multi-modal inputs (text, image, video, audio), and thus converging all the other architectures into one.

• Transformers combine some of the benefits traditionally seen with convolutional neural networks (CNNs) and recurrent neural networks (RNNs).

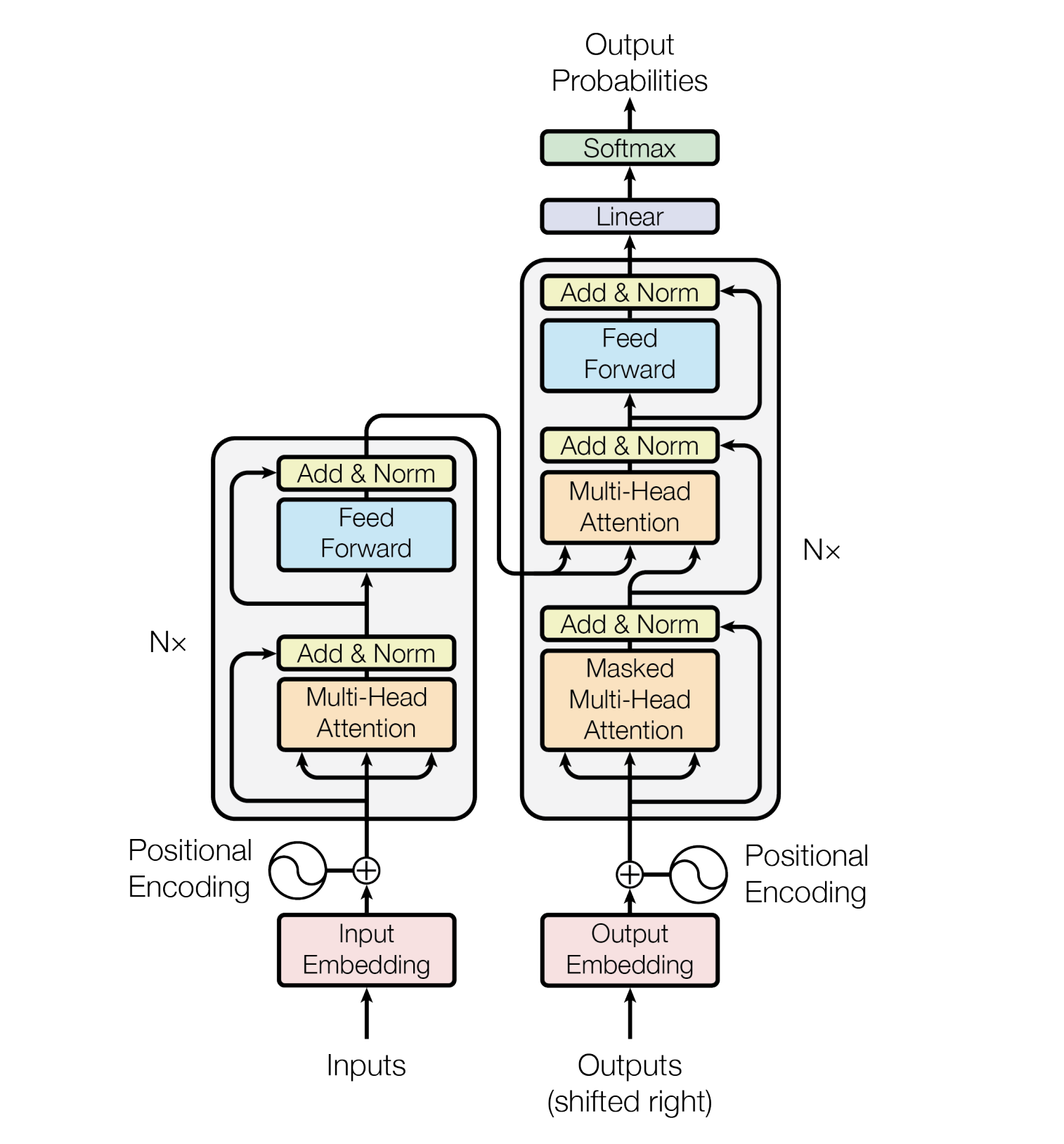

Model Architecture

• The encoder and decoder are represented by six layers (the number can be any, for example, in BERT there are 24 encoder blocks)

graph LR;
Inputs-->Embedding-->SelfAttention-->FeedForwardNN-->Outputs

Model constantly cares about what “she”, “it” , “the”, or “that” refers to (pronouns).

I never been to Mars. But it is on wish list

it here refers to Mars

Query/Key/Value vectors - retrieval system

\( \int x dx = \frac{x^2}{2} + C \)

graph LR;

Query-->Keys-->ToGetValues

• we want to compute the self-attention for the word it in above sentence
• creating matrices Q, K, and V for this input sentence
  • where q (row in matrix Q) represents the query vector for the word it
    • K represents the key matrix for all the words in the sentence
    • V represents the value matrix for all the words in the sentence.
• The self-attention for the word it would then be computed as:
  • the dot product of Q and K, divided by the square root of the length of K, followed by a dot product with V.

\( \frac {Q \cdot K}{\sqrt(dim(K))} \)

The matrices \( (W^Q, W^K, W^V) \) are initially randomly initialized weight matrices.

• The vector \( (x_n) \)in this case would be a word embedding of the input token (or output of the previous attention layer).

Example

Hello World

• Embeddings
  • \( x_0 \) : Hello
  • \( x_1 \) : World
• We have vectors \( q, k, v \) for each of these two words.
• These vectors are generated by multiplying embedding vector of the word and the weight matrix \( W \)

Encoder and Decoder

An encoder transforms a sequence of embeddings into a new sequence of the same length.

• Includes N identical layers (Nx), each of which contains two sub-layers.

  • These two sub-layers are applied at each position of the input embedding sequence, transforming each element of the sequence into a new embedding.
    • The first encoder sub-layer aggregates information from across the input sequence. - aggregation
    • The second encoder sub-layer transforms the aggregated information into an output embedding. - transformation

• Each encoder consists of two layers: Self-Attention and Feed Forward Neural Network.

graph LR;
  inputSequence --> Aggregate --> Transform --> outputSequence

A decoder transforms a sequence of input embeddings into a sequence of output embeddings, possibly with a different length.

• Includes N identical layers with three sub-layers
• First and second of which are similar to the encoder sub-layers.
• The third decoder sub-layer takes the output of the encoder and applies the self-attention mechanism to gather information from it

graph LR;
  inputSequence --> Aggregate --> Transform --> ApplySelfAttention

Self-attention

For this sentence:

 The animal didn't cross the street because it was too tired.


• self-attention layer's attention pattern for the pronoun it: (with the darkness of each line indicating how much each word contributes to the representation:)
• The self-attention layer highlights words that are relevant to it. In this case, the attention layer has learned to highlight words that it might refer to, assigning the highest weight to animal.
• For a sequence of n tokens, self-attention transforms a sequence of embeddings n separate times, once at each position in the sequence.

In the example:

I arrived at the bank after crossing the river

• to determine that the word bank refers to the shore of a river and not a financial institution

  • Transformer can learn to immediately attend to the word river and make this decision in a single step

• To compute the next representation for a given word - bank for example - the Transformer compares it to every other word in the sentence

  • The result of these comparisons is an attention score for every other word in the sentence.
  • These attention scores determine how much each of the other words should contribute to the next representation of bank
    • The disambiguating river could receive a high attention score when computing a new representation for bank
    • The attention scores are then used as weights for a weighted average of all words’ representations which is fed into a fully-connected network to generate a new representation for bank, reflecting that the sentence is talking about a river bank.

Neural networks for machine translation typically contain

• an encoder reading the input sentence and generating a representation of it

• a decoder then generates the output sentence word by word while consulting the representation generated by the encoder

• Transformer starts by generating initial representations, or embeddings, for each word.

  • These are represented by the unfilled circles
  • Then, using self-attention, it aggregates information from all of the other words, generating a new representation per word informed by the entire context, represented by the filled balls.
  • This step is then repeated multiple times in parallel for all words, successively generating new representations.

• The decoder operates similarly, but generates one word at a time, from left to right. It attends not only to the other previously generated words, but also to the final representations generated by the encoder.

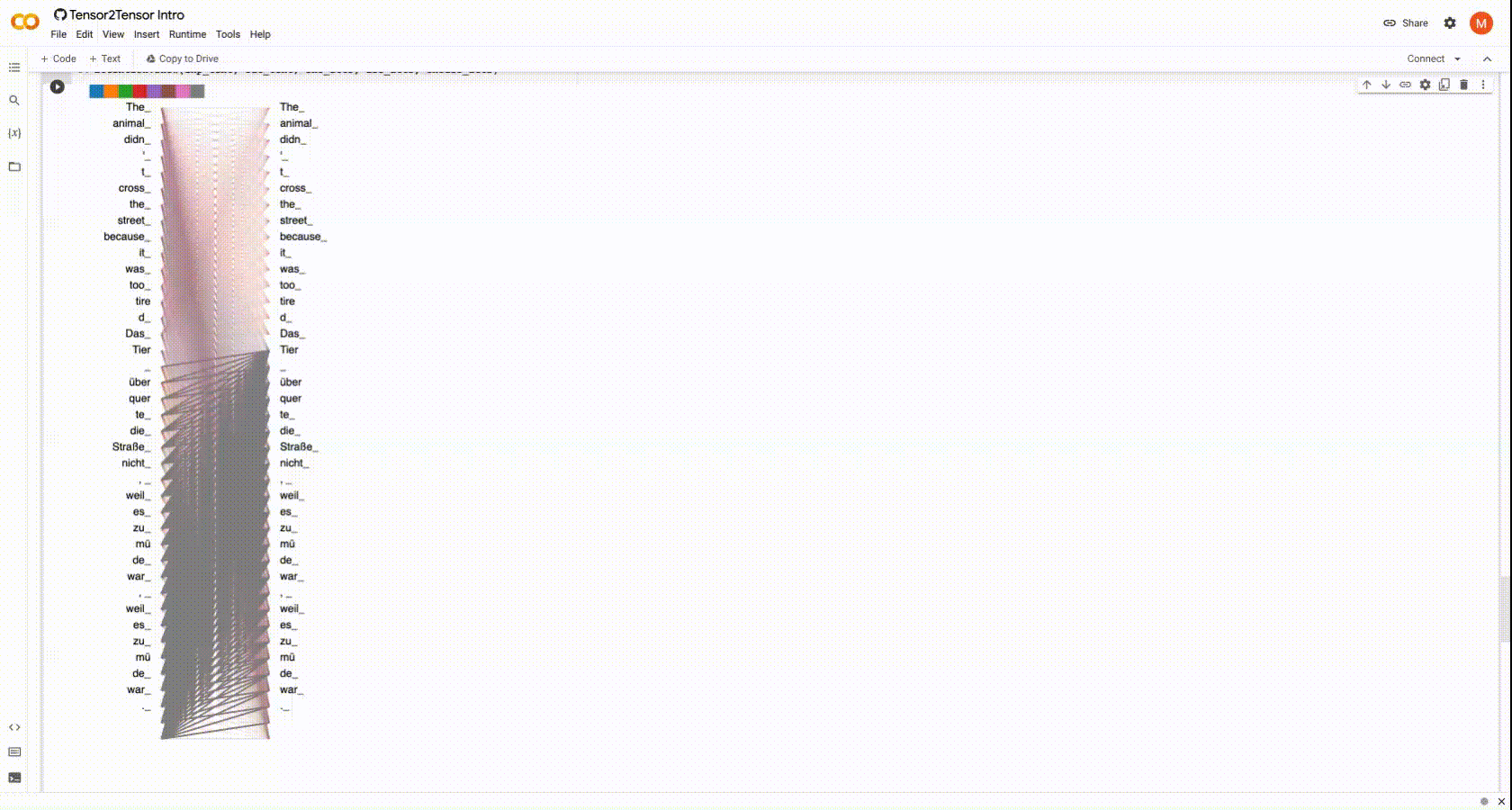

• We can visualize what other parts of a sentence the network attends to when processing or translating a given word, thus gaining insights into how information travels through the network.

• In the first sentence pair it refers to the animal, and in the second to the street.
• In one of its steps, the Transformer clearly identified the two nouns it could refer to and the respective amount of attention reflects its choice in the different contexts.

Given this insight, it might not be that surprising that the Transformer also performs very well on the classic language analysis task of syntactic constituency parsing, a task the natural language processing community has attacked with highly specialized systems for decades.

• Sample work

• Walkthrough
• Notebook

Terms

Term	Description
Gradient descent	A mathematical technique to minimize loss. Gradient descent iteratively adjusts weights and biases, gradually finding the best combination to minimize loss
Loss	The difference between the prediction and the label value is the loss
Forward Pass	System processes a batch of examples to yield prediction(s). The system compares each prediction to each label value. The difference between the prediction and the label value is the loss for that example. The system aggregates the losses for all the examples to compute the total loss for the current batch.
Backward pass (backpropagation)	System reduces loss by adjusting the weights of all the neurons in all the hidden layer(s).Backpropagation determines whether to increase or decrease the weights applied to particular neurons.
Hidden layer	A layer in a neural network between the input layer (the features) and the output layer (the prediction). Each consists of one or more neurons.
Learning Rate	Multiplier that controls the degree to which each backward pass increases or decreases each weight. A large learning rate will increase or decrease each weight more than a small learning rate
Chain rule	expresses the derivative of the composition of two differentiable functions f and g in terms of the derivatives of f and g
Lagrange's notation	a prime mark denotes a derivative. If f is a function, then its derivative evaluated at x is written f`(x)
Encode	In sequence-to-sequence tasks, encoder takes an input sequence and returns an internal state (a vector). Then, the decoder uses that internal state to predict the next sequence.
Tensor	N-dimensional (where N could be very large) data structures, most commonly scalars, vectors, or matrices. The elements of a Tensor can hold integer, floating-point, or string values
language understanding tasks	language modeling, machine translation and question answering
Attention	Weighted sum over a set of inputs, where the weight for each input is computed by another part of the neural network
self-attention	Each embedding in the output sequence is constructed by integrating information from the elements of the input sequence through an attention mechanism.The self part of self-attention refers to the sequence attending to itself rather than to some other context. A self-attention layer starts with a sequence of input representations, one for each word. For each word in an input sequence, the network scores the relevance of the word to every element in the whole sequence of words. The relevance scores determine how much the word's final representation incorporates the representations of other words.Self-attention is one of the main building blocks for Transformers and uses dictionary lookup terminology, such as “query”, “key”, and “value”. Self-attention and multi-head self-attention, which are the building blocks of Transformers.
Masked language modelling	Encoder only architectures (like BERT) solve the task of predicting the masked word in a sentence. So the attention can see all the words before and after this masked word
Predict next token	Predict the next token or set of tokens, i.e. given tokens [0, ..., n-1] predict n

Sentence completion task

• This requires decoder portion of the transformer architecture
• For the translation tasks we need to encode the input text first
  • have a cross-attention layer with the translated text
